Full Canopy

SURVEYOR

Available for single, extra and dual cabs.

Specialist survey equipment needs to be stored in a clean and dry environment and kept secure.

FEATURES & BENEFITS

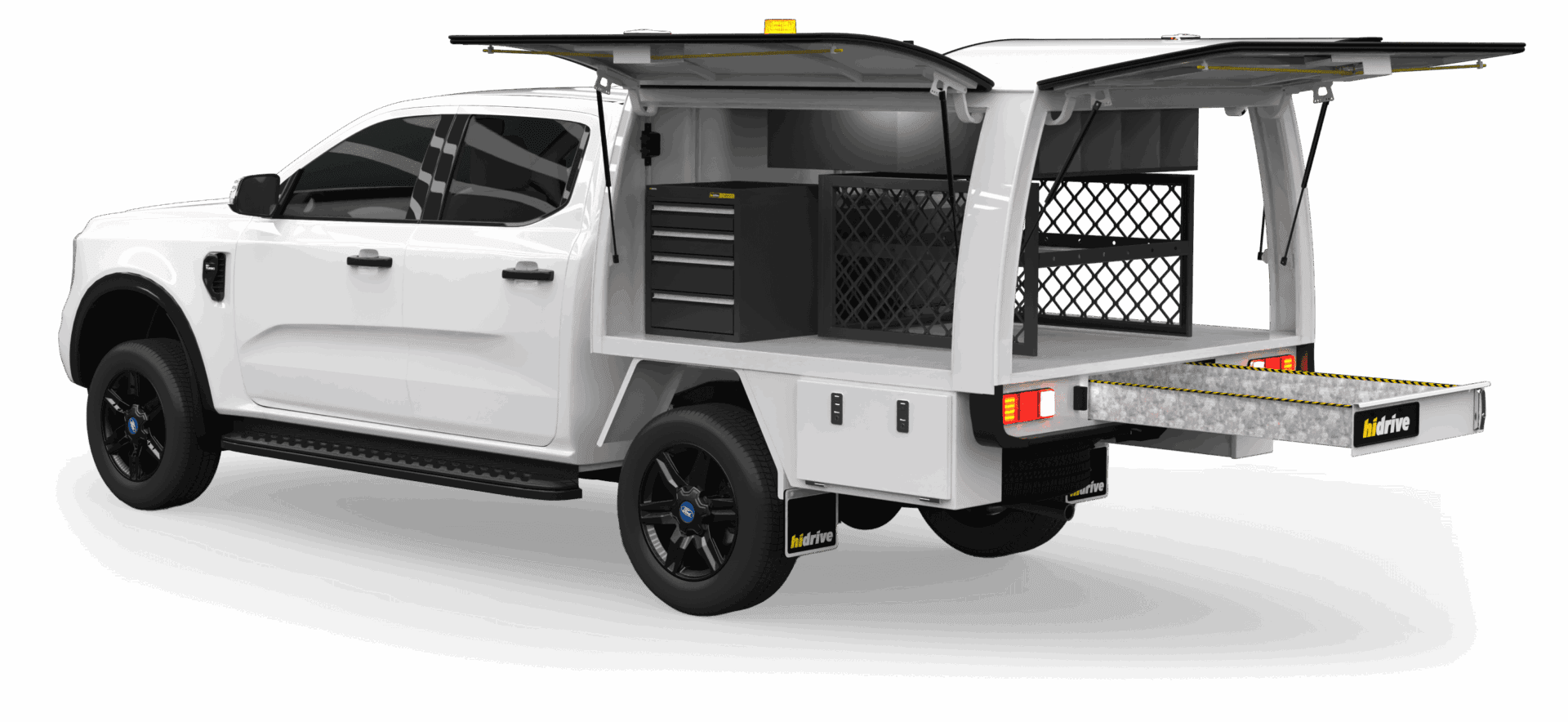

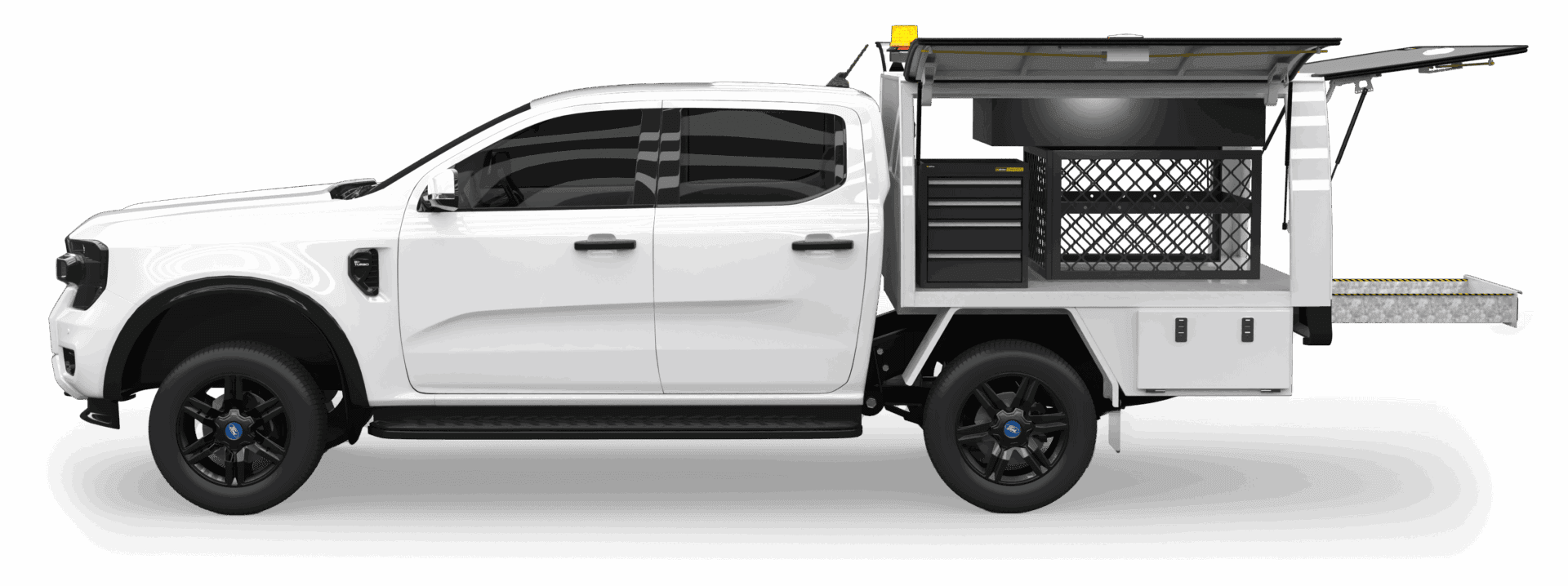

Our Surveyor build is an innovative and compliant solution for transporting and organising prisms, theodolites and the many other tools of the surveyor trade.

A

Fitout ensures valuable survey equipment is organised and secure during transit.

B

The fridge and slide enable crews to stay in the field all day with access to chilled food and water, avoiding the need to leave site to maintain health and safety requirements.

D

The underbody rear roller drawer suits long equipment like shovels, poles and marker pegs.

D

The high-mounted tripod rack provides secure storage and protection for tripods and frees up floor space.

F

The full width rear door enables maximum access to the rear of the canopy, great for loading and unloading bulky cases and other large items.

G

Single key fob locks your vehicle and service body.

Images are for demonstration purposes only and may differ slightly from the final product.

Service Bodies For Utes, Trailers & Trucks
Click and drag to rotate

Case Studies

SA Water

SA Water Civil Maintenance Fleet

SA Water called on Hidrive for 63 purpose-built service bodies with demanding timeframes for delivery.
“They never missed a delivery date through the transition.”

Technical Specifications

Canopy

  • Canopy: L1800 x W1850 x H900 x R2100mm

  • Aluminium co-bonded construction

  • Door open seal system with adjustable tri-action concealed hinges

  • Adjustable airflow vent fitted to roof front/centre

  • Pull down door straps

  • LED high mount stop light fitted top centre of rear door

Compliance

  • Front/rear axle weight compliance report (for registration and licensing authority in state of vehicle registration)

  • Fitment declaration for ADR compliance

  • Secure vehicle storage while in Hidrive care, custody and control, including 24/7 recorded CCTV

  • Insurance for vehicle while in Hidrive care, custody and control (unless otherwise insured)

Included Variations

  • Full width rear door

  • Underbody rear roller drawer, L1520 x W670 x H130mm

  • White 2K automotive paint (no additional charge)

  • All ute brand colours available (request quote)

Included Accessories

  • Internal/external body mounted restraint points

  • 2 x Underbody box, L930 x W240 x H400mm, dual lock

  • Commercial roof bar, 1500mm, single

  • Rubber mat, 10mm holed, profiled to body

  • One-Click vehicle drawer, 460x475x495mm, 4-tier

  • Top pan, suits 460x475mm drawer

  • Custom shelf, up to L1500 x W1200mm

  • Tripod rack, L1200 x W920 x H230mm, 4 slot

  • 3 x Divider, mesh panel

  • Engel chest fridge or freezer, MT-V35F digital MT-V series, 32L

  • One-Click medium duty slide, W460 x L640mm

  • Fridge restraint kit suits W460 x L640mm One-Click medium duty slide

  • AGM dual battery, 12V DC/Solar, 105Ah/25A, fitted in body

  • Dual battery box, rectangular

  • Switch module, 4 way, 12V

  • LED beacon, strobe, round, 130mm high, 12-24V, amber

  • Reverse camera reposition where applicable

  • Central locking linked to vehicle remote

  • Door ajar alarm

  • Automatic LED interior lights

  • 12V double cig socket

Leave no doubt.

Typically, we require a Real Time Gross Settlement (RTSG) form, along with a 30% deposit or a purchase order from an approved customer to commence our delivery process. Your Hidrive Mobile Workspace Specialist will be able to assist you throughout the order confirmation process and answer all your queries. Alternately, please reach out for more information.

Hidrive Service Body Ute Canopies are built with a multi-fit chassis to enable transfer to another brand vehicle, improving resale and the lifetime value of your investment. Some have been in use for over 20 years! A Hidrive on a Hilux might be transferred to a Ranger, then a BT-50, then a Navara, Amarok or a Triton! Re-use is greener than recycling!

In short, yes. While no system is infallible, Hidrive’s ‘positive seal” is well-known and well-regarded in the market for the ability to ensure the canopy remains dust and moisture free.

Equipping your assets with high-quality Hidrive accessories ensures compatibility, warranty and in the case of the tow bar, fit with the vehicle body length.

We drop the towbar to the right height, so there’s a safe gap between the tow-ball and your service body, avoiding hand jamming injuries when attaching / detaching trailers.

Finished height will depend on several factors such as the suspension and if appropriate, any upgrade to the suspension, the height of the canopy and other factors. Feel free to chat with a member of our team to help us better understand your requirements so that we might make a fit-for-purpose recommendation and estimate of the finished height, based on our experience.

There are three service body heights: 850/900/1000mm. While 850mm is our “streamlined” service body, the 900 and 1000mm allows for greater capacity to fit larger items and bigger loads.

Feel free to reach out to our friendly and knowledgeable Mobile Workspace Experts. They’re trained to understand vehicle axle loads and GVM regulation and compliance issues.

Yes, we have a showroom at all our manufacturing and installation facilities across Australia. Find your nearest Hidrive location here.

We often find that the best way to share the quality and difference in a Hidrive Service Body is to visit one of our showrooms to help understand how we can build a fit-for-purpose solution and also to help understand the process of delivery of your service body on time, with certainty.

Yes, we work closely with dealers, fleet management organisations (FMO’s) and finance companies to help ensure a seamless experience.

Please note that Hidrive does not guarantee that any business or individual will be eligible for finance.
